…. in astronomy

More on the ecliptic and galactic coordinate system later.

Horizon System Equatorial System
  still moved
Horizon Equator         as Fundamental Plane
Height h (above horizon)  Declination δ
from 0 ° to ±90 °  from 0 ° to ±90 ° (alternatively: N/ S instead of +/–)
Azimuth a  Hour Angle τ Right Ascension α
in 1 °  as time in 1 °
from S to W  from S to W from ϒ to E
place- and time dependent  time dependent
Star coordinates  a star has both coordinates
change only declination fix of the star are fix
  transform: τ = θ – α (sidereal time θ)

The height of the celestial pole above the horizon corresponds to the latitude of the observation location. = At the equator, Polaris is directly on the horizon; in the southern hemisphere it is never above the horizon. In the northern hemisphere, the stars move in inclined arcs from east via south to west; at the equator, the stars rise and fall vertically; in the southern hemisphere, they move in inclined arcs from east via north to west.

Azimuth a … indicates the distance to the meridian in degrees. In geography and astronomy, the counting directions are different, which often causes confusion. In astronomy, the classic way of counting is in the direction of the (daily) celestial rotation, i.e. from east to west.
Hour angle τ … Angular distance of a celestial body to the meridian. Is counted with the (daily) celestial motion to the west and measured in time units (h, m, s).
Right ascension α … Distance of the celestial body from the vernal equinox. Is counted with the (annual, i.e. “correct”) movement of the sun to the east and measured in units of time (h, m, s).
Sidereal time θ … is the hour angle of the vernal equinox and thus mediates between the hour angle of an object and its right ascension.
Vernal equinox ϒ … the intersection of the ecliptic with the celestial equator at which the sun is at the vernal equinox (approx. 21.03.); for historical reasons also called Aries point ϒ, although it is now in Pisces (Psc).

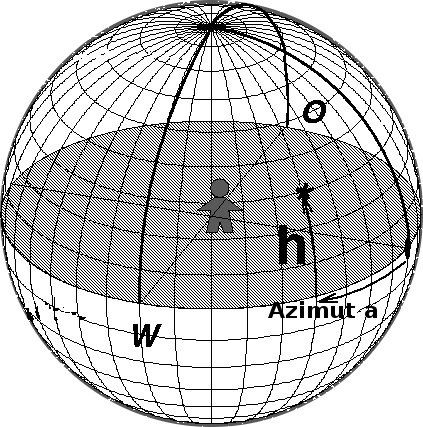

Figure 1: Horizon system: A purely descriptive coordinate system: The observer is the center of the celestial sphere, the “poles” are his head (zenith [Arabic: vertex]) and his feet (nadir [Arabic: base]). The most important great circles are the (mathematical) horizon and the meridian, i.e. the line from north to south through zenith and nadir. The term first vertical for the great circle through east and west is used less frequently. (note bene: The fact that we are looking at the celestial sphere from the outside could again lead to confusion about the cardinal points: East is now to the right of the picture).

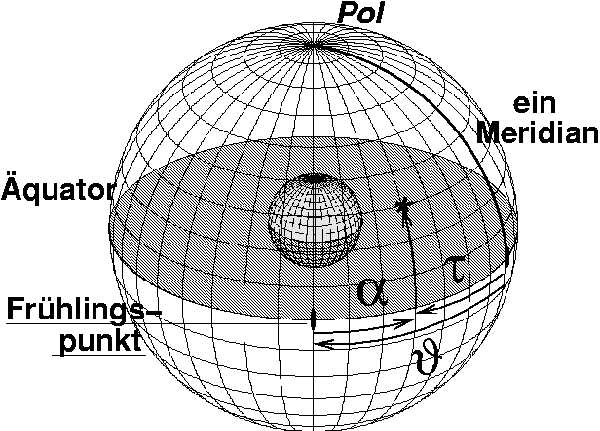

Figure 2: Equatorial systems: The celestial sphere’s network of degrees in the equatorial system surrounds the Earth. In this drawing, we are looking at the Earth from the outside through the celestial sphere. The location of the observer, whose meridian is shown, is to the east of us. The hour angle t is counted from the meridian to the west; the right ascension is counted from the vernal equinox to the east. The sidereal time J is the hour angle of the vernal equinox. (note bene: The fact that we are looking at the celestial sphere from the outside could again lead to confusion about the cardinal points: East is now to the right of the picture).

Horizontal System

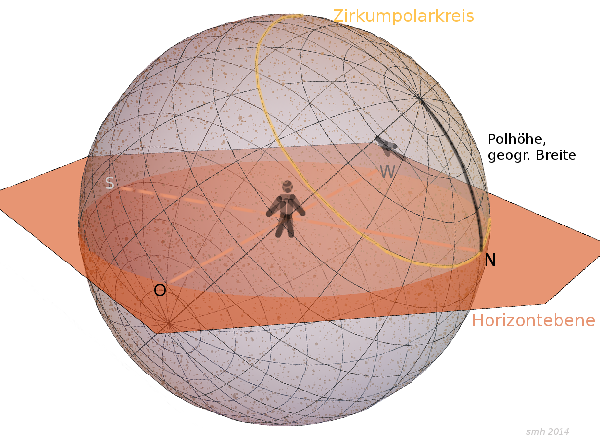

Horizon system of astronomy: During the course of the night, the apparent celestial sphere rotates around the rotation poles of the sky. There is currently a very conspicuous star near it, which is therefore called the Pole Star.
The height of the north celestial pole corresponds to the latitude of the observation site.

The image can be downloaded and used for teaching purposes: please cite the source as “online teaching material collection exopla.net”

The stars therefore follow paths in the sky at night, which can be photographed as line trails; above is an example.

Equatorial System

Equatorial system(s)

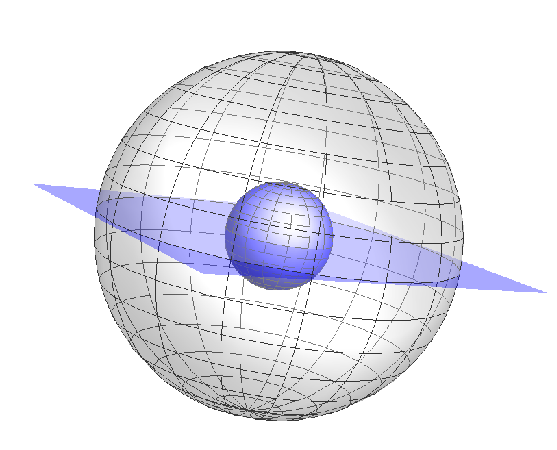

In the modern equator system, we simply project the Earth’s usual coordinate system onto the sky. This creates a celestial equator around whose poles the apparent celestial sphere rotates.
